ACT 04-20 WRX STI Mod Twin HD Race Kit Sprung Mono-Drive Hub Torque Cap 895ft/lbs Not For Street Use
ACT 04-20 WRX STI Mod Twin HD Race Kit Sprung Mono-Drive Hub Torque Cap 895ft/lbs Not For Street Use
ACT 04-20 WRX STI Mod Twin HD Race Kit Sprung Mono-Drive Hub Torque Cap 895ft/lbs Not For Street Use
ACT 04-20 WRX STI Mod Twin HD Race Kit Sprung Mono-Drive Hub Torque Cap 895ft/lbs Not For Street Use
ACT 04-20 WRX STI Mod Twin HD Race Kit Sprung Mono-Drive Hub Torque Cap 895ft/lbs Not For Street Use
ACT 04-20 WRX STI Mod Twin HD Race Kit Sprung Mono-Drive Hub Torque Cap 895ft/lbs Not For Street Use
ACT 04-20 WRX STI Mod Twin HD Race Kit Sprung Mono-Drive Hub Torque Cap 895ft/lbs Not For Street Use
ACT 04-20 WRX STI Mod Twin HD Race Kit Sprung Mono-Drive Hub Torque Cap 895ft/lbs Not For Street Use
ACT 04-20 WRX STI Mod Twin HD Race Kit Sprung Mono-Drive Hub Torque Cap 895ft/lbs Not For Street Use
ACT 04-20 WRX STI Mod Twin HD Race Kit Sprung Mono-Drive Hub Torque Cap 895ft/lbs Not For Street Use
ACT 04-20 WRX STI Mod Twin HD Race Kit Sprung Mono-Drive Hub Torque Cap 895ft/lbs Not For Street Use
ACT 04-20 WRX STI Mod Twin HD Race Kit Sprung Mono-Drive Hub Torque Cap 895ft/lbs Not For Street Use
Sale
ACT

ACT 04-20 WRX STI Mod Twin HD Race Kit Sprung Mono-Drive Hub Torque Cap 895ft/lbs Not For Street Use

$2,185.00
$1,719.80 In Stock Sold out

Sold out

Add to wishlist Added to wishlist
Add to compare Added to compare
CODE: ACTT1R-S05

CARB RESTRICTED ITEMS WILL NOT Ship to restricted addresses.

ALL PRODUCTS ARE FOR OFF-ROAD USE ONLY

  • Description
  • CARB RESTRICTED ITEMS
  • Shipping and Returns

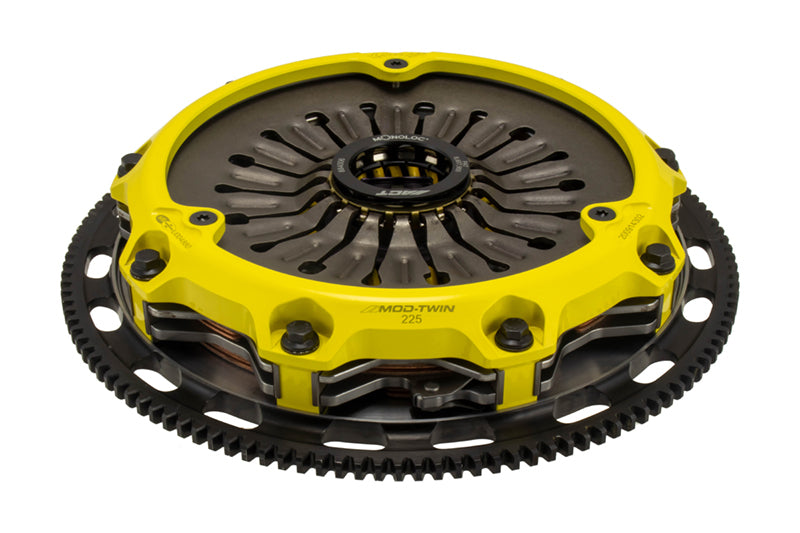

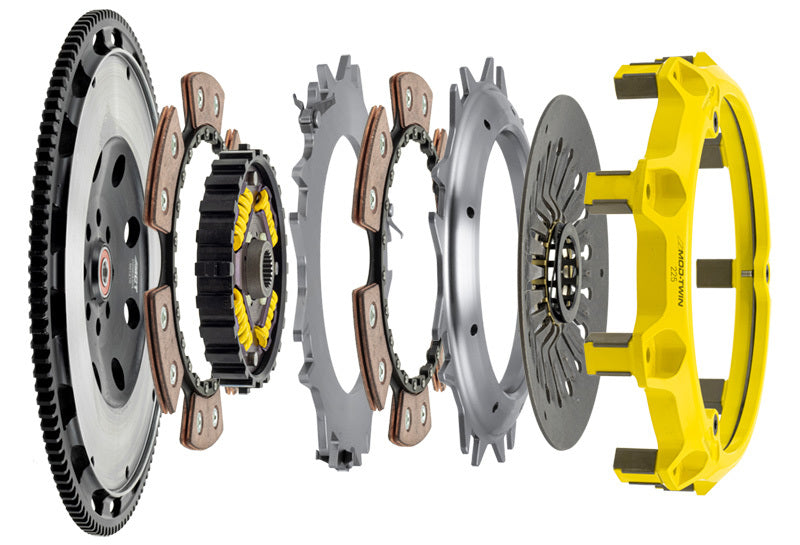

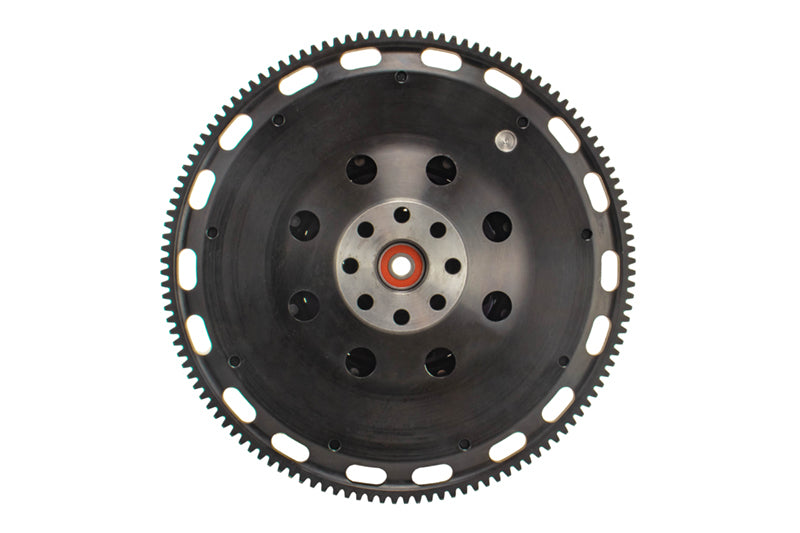

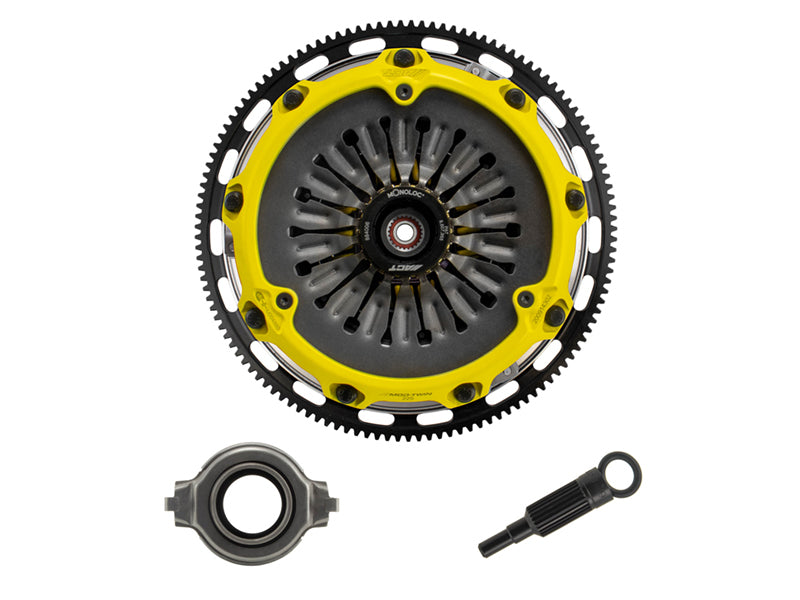

T1R-S05 Mod-Twin 225 HD Sprung Race Kit performs aggressive launches and smoother shifting in high powered AWDs by combining twice the ceramic friction surfaces with an ultra-durable Mono-Drive sprung hub assembly in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process providing a consistent light pedal feel. Puck-style Friction Plates with high quality ceramic friction materials deliver high friction coefficient, superior heat capacity, and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive sprung hub assembly which extends input shaft life and reduces driveline shock from torsional vibration. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.

This Part Fits:

Year Make Model Submodel
2004-2014 Subaru Impreza WRX STI
2007,2011-2014 Subaru Impreza WRX STI Limited
2010 Subaru Impreza WRX STI Special Edition
2015-2021 Subaru WRX STI Base
2015 Subaru WRX STI Launch Edition
2015-2021 Subaru WRX STI Limited
2020 Subaru WRX STI S209
2016 Subaru WRX STI Series.HyperBlue
2018 Subaru WRX STI Type RA

PLEASE NOTE, COMPETITION OFF-ROAD COURSE ONLY PRODUCTS ARE NOT CARB COMPLIANT AND ARE FOR OFF ROAD AND RACING USE ONLY. BY PURCHASING FROM CMBUILDZ, YOU UNDERSTAND THAT THESE MAY ONLY BE USED FOR OFF ROAD AND RACING USE ONLY FOR UNREGISTERED VEHICLES. PLEASE CHECK WITH YOUR LOCAL, STATE, AND FEDERAL LAWS TO SEE IF THESE PRODUCTS ARE LEGAL FOR USE IN YOUR AREA. BY PURCHASING ANY PRODUCTS FROM CMBUILDZ, YOU UNDERSTAND AND AGREE TO THESE TERMS AND ACCEPT ALL LIABILITY.

CARB restricted products do NOT ship to addresses that are restricted.

If you are receiving a "Some items in your cart can't be shipped to the provided address" error upon Checkout, then you must remove any CARB restricted items from your cart to complete check out.

All Parts sold are considered Racing Products that are for Competition Off-Road use only.

By purchasing any and all products and completing your cart check out, you are agreeing with CMBUILDZ terms and conditions and understand that some items in your cart might not be able to ship to certain addresses / states due to CARB restrictions and that these products will only be used on Competition Closed Course applications.

CMBUILDZ is not responsible for mis-use of any products nor is responsible for any return/refund costs.
